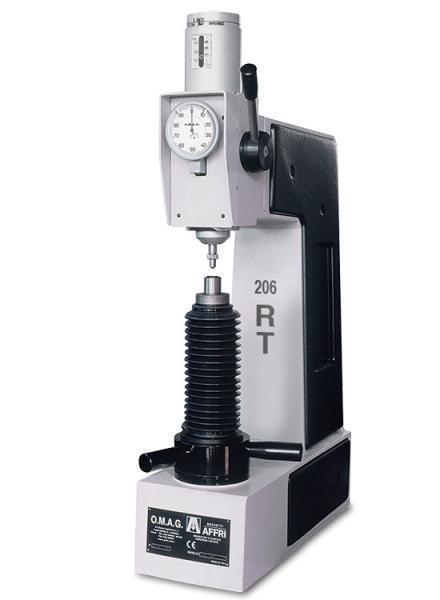

A-A Durometro Rockwell 206RT

Durómetros Rockwell

Código: P-206RT

Durómetro Semi-automático analógico:
Marca: AFFRI
206RT is a fast and really easy bench hardness testers with high accuracy standards.
To perform the test just act on the elevating screw and bring the sample to make contact with the indenter, then push the start button activating preloading and loading in automatic succession.
Direct Rockwell reading value is immediately visible on the clear dial gauge and can be converted in other hardness scale methods using Affri conversion tables.
Load forces are applied through two dynamometric load cells which eliminates problems associated with dead weight systems on traditional testers. It is not affected by vibration and it doesn’t need to be leveled.

Capacidad de carga:
De 3 a 187,5 kgf (De 29,42 a 1839 N)
Rockwell ISO 6508 / ASTM E-18:
HRA - HRB - HRC - HRD - HRE - HRF - HRG - HRH - HRK / HRN - HRT
Brinell ISO 6506 / ASTM E-10 (Sólo indentation):
HB 30 - HB 10 - HB 5 - HB 2,5 MPa (F/D2)
Vickers ISO 6507 / ASTM E-384 (Sólo indentation):
HV3 - HV10 - HV15 - HV30 - HV60 - HV100

Accesorios Opcionales
